Load Cells

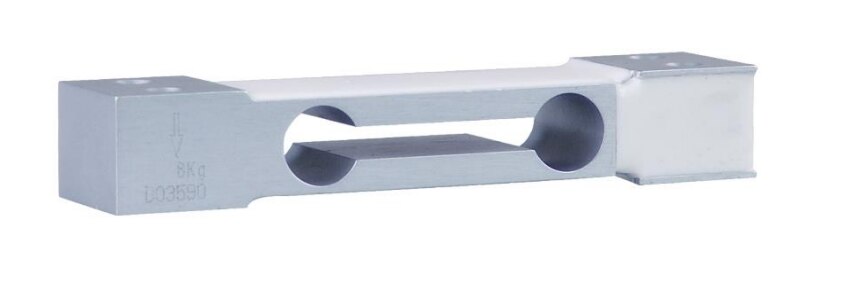

Zamic-L6D

Share with
Share this on :

Description

Product details

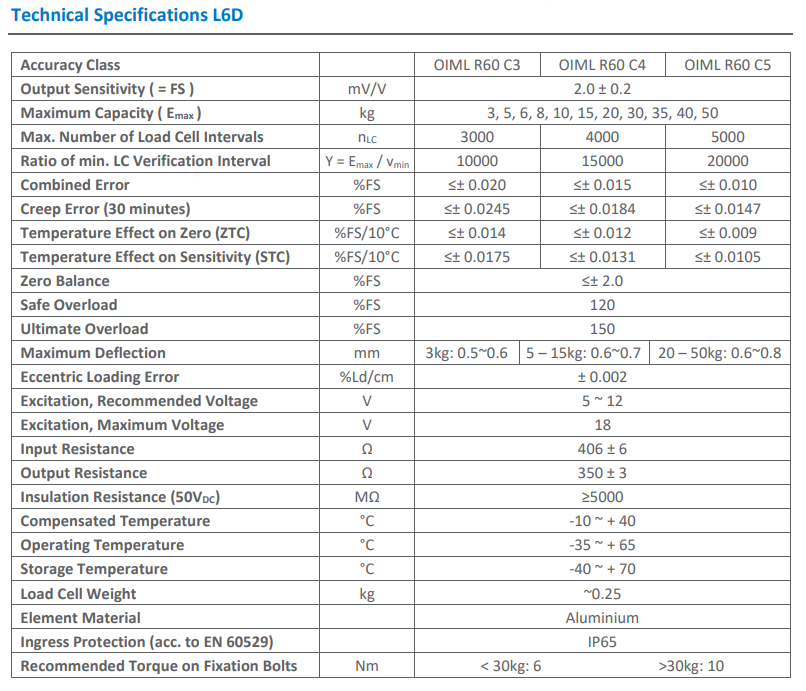

• Aluminium-alloy IP65 single point load cell Test certificate no. TC7868 Revision 1 • Colorless anodized C of C no R60/2000-NL1-12.52 • Suitable for pricing scales, bench scales, etc. • Recommended maximum platform size: 250 x 350 mm
