Product Description:
Ensure passenger safety and elevator performance with the EOS-W Elevator Overload Control System, designed specifically for spring-type elevator cabins. This advanced system detects overload conditions with precision and triggers immediate response through its intelligent indicator and relay outputs.

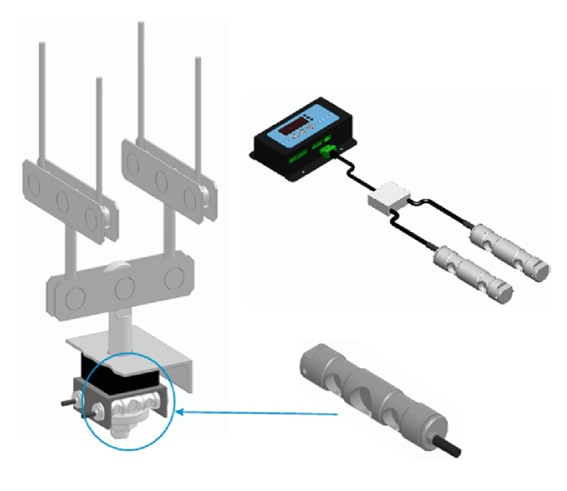

The EOS-W features high-accuracy load cells with IP67 protection, ideal for tough elevator environments. Easy to install beneath the cabin springs or under the motor bed frame, it ensures consistent and safe elevator operations. Trusted by professionals for its reliability and accuracy, EOS-W is the perfect fit for both new and retrofit elevator applications.
---
🔧 Technical Specifications:
Feature Details
Capacity 2000 kg (system), 1000 kg (per load cell)
Maximum Overload Capacity 3000 kg
Accuracy Class 0.5%
Relay Outputs 3
Relay Activation Levels 1. 5 kg (passenger presence)
2. 90% (move without stopping)
3. 100% (overload stop)
Supply Voltage ~230V±20V AC, 50±1Hz (optional: 24V±4V DC)
Power Consumption 6 W
Temperature Range -10°C to +50°C
Indicator Protection Class IP54
Load Cell Protection Class IP67
Connectivity RS-232, RS-485, CAN, Analog (0-10V / 4-20mA)
Warranty 1 Year
---
📦 Set Contains:
3x Load Cells (1000 kg capacity each)
1x IP65 Rated Junction Box
1x Digital Indicator with Display & Relay Output
---
✅ Key Benefits:
Accurate overload detection for elevator safety.
Supports multiple communication protocols (RS-485, CAN, Analog).
Quick and easy installation under spring-based suspension.
Built-in 3-stage relay logic for proactive safety alerts.
Rugged and durable construction with IP67-rated sensors.
---
🏷 Ideal For:
Passenger elevators
Freight lifts
Modernization & retrofit projects
OEM elevator control panels
