Home Products Zamic-H14W
COD not available
Load Cells

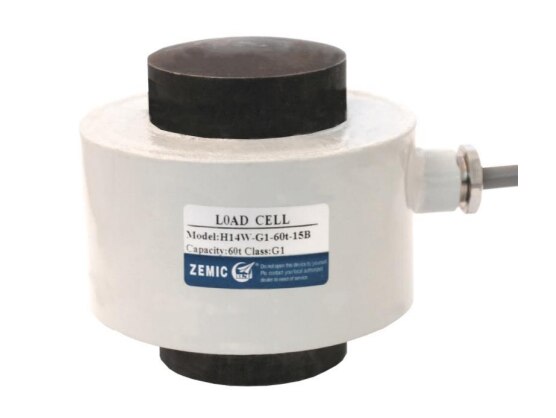

Zamic-H14W

Share with
Share this on :

Description

Product details

ā€¢ Alloy steel IP66 compression load cell ā€¢ Epoxy coated ā€¢ Cable suitable for application with higher temperatures up to 130ĖšC ā€¢ Low profile ā€¢ Double bridge option from 13t and up available ā€¢ 350t and 500t load cells are delivered with a connector for easy installation

Keywords
