Home Products Zamic-H14W
COD not available
Compression Type Load Cells

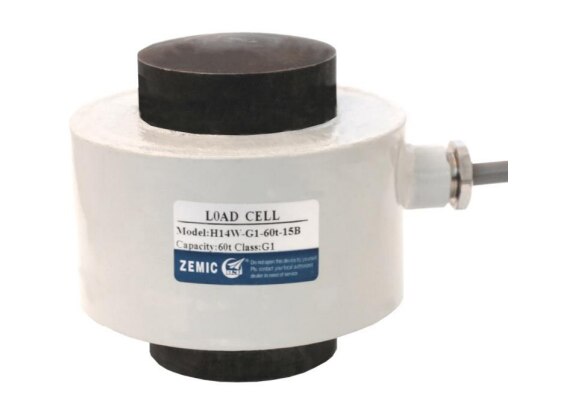

Zamic-H14W

Share with
Share this on :

Description

Product details

Short Description • Alloy steel IP66 compression load cell • Epoxy coated • Cable suitable for application with higher temperatures up to 130˚C • Low profile • Double bridge option from 13t and up available • 350t and 500t load cells are delivered with a connector for easy installation

Keywords

  • Filter tags

Other Products

Related Products

Product Description: Ensure passenger safety and elevator performance with the EOS-W Elevator Overload Control System, designed specifically for spring-type elevator cabins. This advanced system detects overload conditions with precision and triggers immediate response through its intelligent indicator and relay outputs. The EOS-W features high-accuracy load cells with IP67 protection, ideal for tough elevator environments. Easy to install beneath the cabin springs or under the motor bed frame, it ensures consistent and safe elevator operations. Trusted by professionals for its reliability and accuracy, EOS-W is the perfect fit for both new and retrofit elevator applications. --- 🔧 Technical Specifications: Feature Details Capacity 2000 kg (system), 1000 kg (per load cell) Maximum Overload Capacity 3000 kg Accuracy Class 0.5% Relay Outputs 3 Relay Activation Levels 1. 5 kg (passenger presence) <br> 2. 90% (move without stopping) <br> 3. 100% (overload stop) Supply Voltage ~230V±20V AC, 50±1Hz (optional: 24V±4V DC) Power Consumption 6 W Temperature Range -10°C to +50°C Indicator Protection Class IP54 Load Cell Protection Class IP67 Connectivity RS-232, RS-485, CAN, Analog (0-10V / 4-20mA) Warranty 1 Year --- 📦 Set Contains: 3x Load Cells (1000 kg capacity each) 1x IP65 Rated Junction Box 1x Digital Indicator with Display & Relay Output --- ✅ Key Benefits: Accurate overload detection for elevator safety. Supports multiple communication protocols (RS-485, CAN, Analog). Quick and easy installation under spring-based suspension. Built-in 3-stage relay logic for proactive safety alerts. Rugged and durable construction with IP67-rated sensors. --- 🏷 Ideal For: Passenger elevators Freight lifts Modernization & retrofit projects OEM elevator control panels
View Details
Elevator Overload Control System EOS-W (Under Spring Installation)
SCALE-TEC SAB Classic INCAL – Multi-Application Analytical Balance for Precision Weighing Boost your lab accuracy with the SCALE-TEC SAB Classic INCAL Analytical Balance, designed for top-tier performance across diverse laboratory and industrial applications. Featuring electromagnetic force restoration, internal calibration, and monolithic block technology, this balance delivers unmatched precision and reliability. 🔍 Key Features: High-Precision Internal Calibration – Ensures accuracy with a single touch. Electromagnetic Monolithic Sensor – Delivers ultra-fast stabilization (under 5 seconds). Multiple Weighing Modes – Supports Standard Weighing, Counting, Percentage, Animal Weighing & Density Measurement (optional). Large, Easy-to-Read LCD Display – Backlit with 15 mm high-contrast digits. Glass Draft Shield Chamber – Frameless design for improved visibility and sample handling. Connectivity – Comes with RS-232 and USB data interfaces for seamless data transfer. 📐 Available Models: Capacity (g) Resolution (mg) Pan (mm) Model: SAB 124CL-INCAL, Capacity (g): 120g, Resolution (mg): 0.1 mg, Pan (mm): Ø 90 Model: SAB 224CL-INCAL, Capacity (g): 220g, Resolution (mg): 0.1 mg, Pan (mm): Ø 90 🧪 Applications: Perfect for use in: 1: Pharmaceutical & Biomedical Laboratories 2: Food & Materials Science 3: Plastics & Rubber Testing 4: Chemical, R&D, and QA/QC Laboratories 🛠 Optional Accessories: Density Kit Printer Weighing Software Anti-Vibration Table
View Details
SAB Classic Incal
Two-range analytical scale with readout 0.01mg (0.00001g) up to 82g and 0.1mg above. The APN220/82G scale is a two-range analytical scale equipped with many interfaces. USB-B and USB-A interfaces that enable data exchange with a computer and a printer, keyboard or external data storage media. Additionally, the balance is equipped with a LAN interface, thanks to which the scale can be connected to a computer network. RS232C can be used, for example, to connect a barcode reader. Each professional analytical scale included in the APN/G series has an extensive interface in the form of a keyboard (consisting of function and numeric keys) that allows you to quickly select the desired functions. The device can support a large database that includes information about: - products, - users, - measurements. The scale also has a spacious weighing chamber, which is closed on three sides with sliding glass. Alibi's memory can store up to 100,000 measurements. Moreover, it is possible to transmit this data to and later archive it on a computer disk.
View Details
APN/G Series
