Home Products Zamic-H3
COD not available

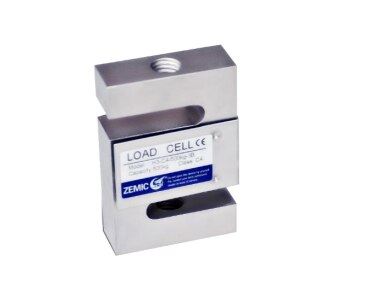

S Type Load Cells

Zamic-H3

Share with
Share this on :

Description

Product details

Short Description • Nickel plated alloy steel IP67, “S” type load cell Test certificate no. D09-03.18 Rev. 1 • Tension and compression applications C of C no R60/2000-CNI-00.01 • Suitable for hanging, hopper and other weighing devices Certificate no. 06-099A1 • Also available in imperial capacities and dimensions

Keywords
