Home Products Zamic-H8C
COD not available

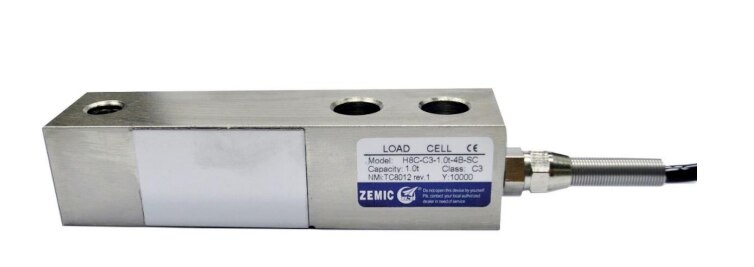

Shear Beam Load Cells

Zamic-H8C

Share with
Share this on :

Description

Product details

Short Description • Nickel plated alloy steel IP67 shear beam load cell Test certificate no. TC8012 Revision 1 (100kg & 250kg are bending beam load cells) C of C no R60/2000-NL1-12.12 • Suitable for platform weighing, container and tank scales, bed weighing, etc. Certificate no. 12-028 • High accuracy • High reliability • Current calibrated (SC-option) • Optional T-hole force introduction available (W6 version) • Optionally with through hole (W4 version)

Keywords
