Home Products Zamic-HM9C
COD not available
Load Cells

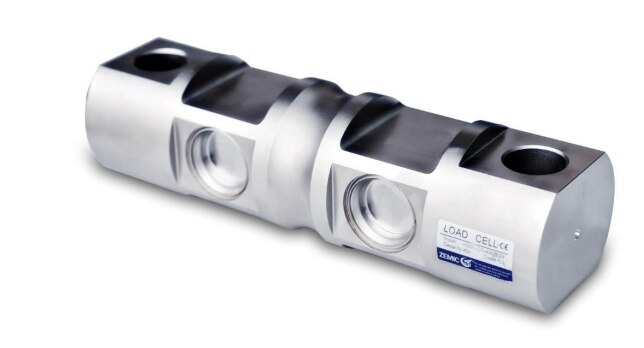

Zamic-HM9C

Share with
Share this on :

Description

Product details

ā€¢ Nickel plated alloy steel IP68 dual shear beam Test certificate no. D09-06.46 load cell ā€¢ High accuracy ā€¢ Suitable for onboard, truck and rail scales and other heavy weighing devices such as silos ā€¢ Hermetically sealed ā€¢ Optimized for better mechanical shock load resistance
